The Sovereign Cascade
A 16‑metre vertical water cascade run entirely from its own solar canopy and battery vault, on a fixed daily cycle.
Proposed development · Section 221, Lot 12
John Guise Drive, Waigani, NCD, Papua New Guinea
enquiry@pngpacificsin.org
A 16‑metre vertical water cascade run entirely from its own solar canopy and battery vault, on a fixed daily cycle.
A 16‑metre vertical water cascade at the heart of the complex, run entirely from its own solar canopy and battery vault, on a fixed daily cycle. Select a time to see the system state.

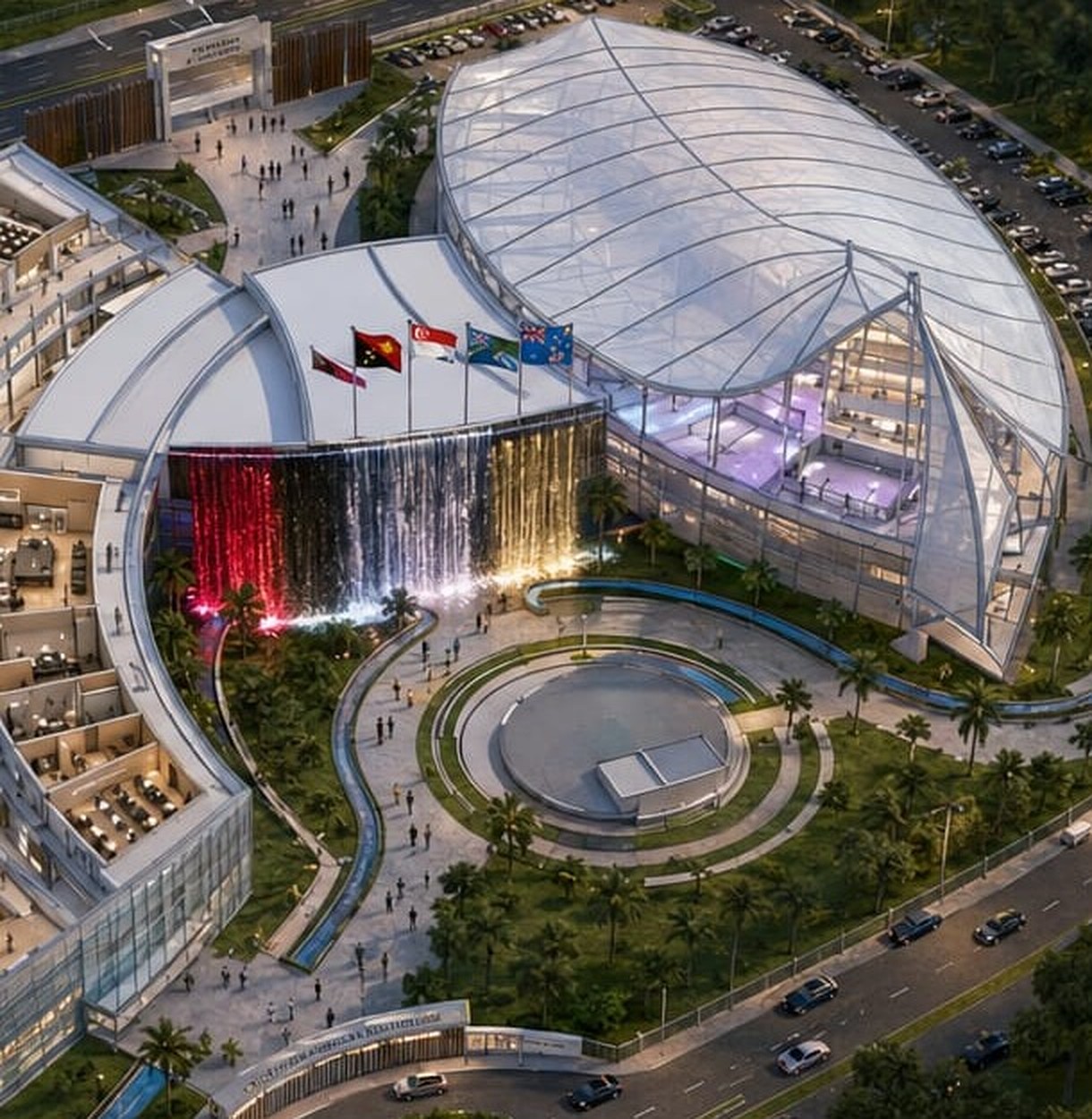

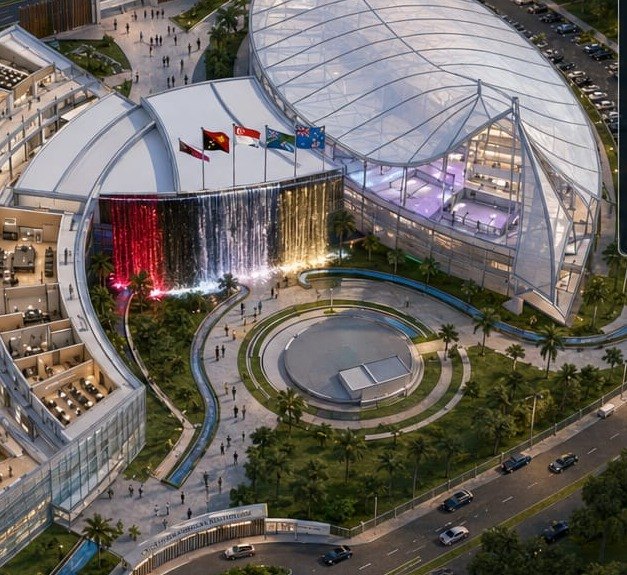

Artist’s impression: signage indicativeThe central controller confirms battery and solar capacity, then the variable‑speed drives ramp the 110 kW pumps over a 120‑second soft‑start cycle, initiating the 16‑metre cascade.
Design specification: target performance
The cascade is not plumbed into the grid as an ornament. It is a closed energy and water loop with its own generation, storage and control.
The roof is the power station. Collection begins at 06:00 and feeds the vault directly.
Storage sized to carry the night illumination shift without drawing from the grid.
The controller confirms available capacity before it will start the pumps, and ramps them over a 120‑second soft start rather than switching them in.
Lifting 180,000 litres of kinetic water volume at 450 litres per second to a 16‑metre gravity fall.
Arrayed inside the base filtration pool, angled 75° upward into the falling water, modulating colour cycles.
| Subsystem | Load |
|---|---|
| Pumping core | 220 kW |
| Illumination | 15 kW |
| Control automation | 2 kW |
| Total operating load | 237 kW |
| Measure | Value |
|---|---|
| Total kinetic water volume | 180,000 litres |
| Flow rate | 450 litres per second |
| Gravity ribbon fall | 16 metres |
| Spotlight angle | 75° upward |
Spotlights sit inside the base filtration pool, angled upward into the fall. A DMX‑512 digital automation board modulates the colour cycles, projecting the national colours of Papua New Guinea (red, black, gold) and Singapore (red, white) for state visits and international conventions.
